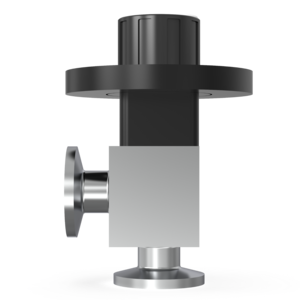

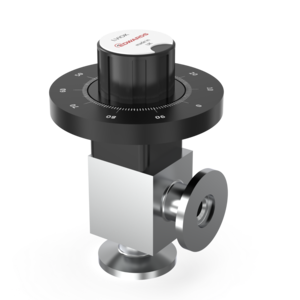

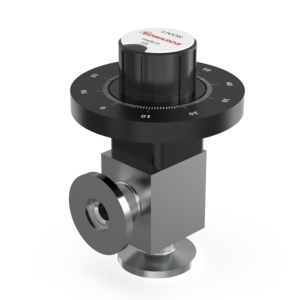

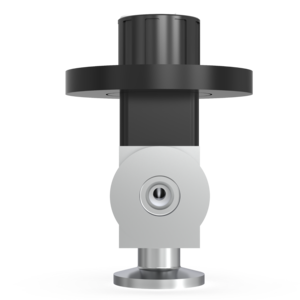

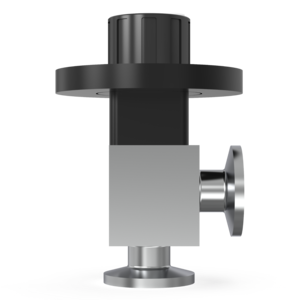

Leak Valve - LV10K - NW10 Flanges, C37102000
Onderdeelnummer:C37102000
EUR 478.00
Toegevoegd aan uw winkelwagen
Leak Valve
De LV10K naaldklep biedt fijne controle over de gasdoorstroming in een vacuümkamer of een gereguleerde lek om de druk in een vacuümsysteem te regelen en is geschikt voor gasinlaat tot 10^-5 mbar / 8 x 10^-6 Torr. Geschikt voor pijpleiding- of paneelmontage.
Features and Benefits
- Eenvoudige handmatige lekventiel.
General Product Information
| Recommended Pressure Range Max | 2.000 × 10⁵ |
| Connection Inlet Flange | DN 10 ISO-KF (NW10) |
| Weight | 0.138 |
| Valve Actuation Method | Manual |
| Connection vacuum outlet flange | DN 10 ISO-KF (NW10) |
| Leak Rate | 1.000 × 10⁻⁸ |
| Dimensie Opmerkingen | The dimensions length, width and height try to describe the outer shape of this particular product in its typical orientation when standing on the ground. For valves in particular we recommend checking the detailed dimensions given in 2D drawings in the instruction manual or the 3D shapes given in 3D models. |
Operation Conditions - Limitations
| Inlaat Absolute Druk Continu Max | 2.000 × 10⁵ |
Performance Data
| Leak Rate Across Seat Valve | 1.000 × 10⁻⁸ |
| Maximaal Drukverschil | 100000.00 |
Material of Construction
| Material Body | Aluminum |
| Material Abbreviation | Al |
| Material Needle | Martensitic Stainless Steel EN56AM |
| Product Titel | Onderdeelnummer | Prijs | In winkelwagen |
|---|---|---|---|
| Clamping Ring - St St NW10/16 (red wing nut), C10512401 | C10512401 | EUR 10.30 | |
| Centring Ring - St St FKM O-Ring - NW10, C10511395 | C10511395 | EUR 13.60 | |
| Centring Ring - Al Nitrile O-Ring - NW10, C10511398 | C10511398 | EUR 8.60 | |
| Centring Ring - Al FKM O-Ring NW10, C10511397 | C10511397 | EUR 13.70 |
| Product Titel | Onderdeelnummer | Prijs | In winkelwagen |
|---|---|---|---|
| Spares Kit Valve Seat, C37102812 | C37102812 | EUR 337.00 |
