Protective case, with foam protection, 275 x 230 x 83 mm Charger kit 5v USB-C to USB-C interface cable

Draagbare Meting

Draagbare meting biedt de mogelijkheid om eenvoudig spotmetingen uit te voeren.

Dankzij de netonafhankelijkheid is het Edwards P3 handheld alles-in-één meetsysteem het essentiële apparaat voor:

Ook beschikbaar is het accessoirepakket, dat niet alleen een koffer biedt om de meter in te vervoeren en beschadiging tijdens transport te voorkomen, maar ook speciale PC-software en een netsnoer om langdurige meettracking en logging mogelijk te maken, voorbij de standaard ingebouwde datalogging. Dit kan drukstijgingslekkagetests mogelijk maken op grote/ondergrondse systemen waar standaard lekcontrole niet haalbaar is.

P4 Gauge - NW16

For Bluetooth enabled model - please order D03000550 P4 Gauge (Bluetooth) - NW16 (Gauge only)

Features and Benefits

• Variably applicable: The P4 compact vacuum meter measures absolute pressure from Abs. 2000 to 1mbar (1500- 1Torr)

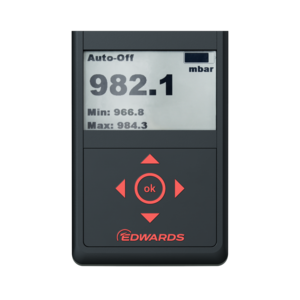

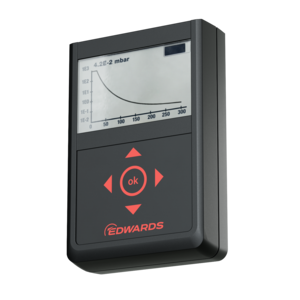

• Big graphic display: The integrated display and a 4+1 membrane keypad allow intuitive menu navigation. Measured values and pressure curves can directly be read out on-site.
• Precise solutions: The compact vacuum meters' displays show absolute and relative pressure as well as the lowest and highest value of a measurement cycle. Temperature-compensated sensors and advanced electronics guarantee precise and reproducible measuring results.
• Rate of rise measurement: Our P4 is perfectly suited for the long-term control of the increase in pressure to secure the tightness of vacuum chambers and vacuum systems.
• Connection: The different models can easily be connected to vacuum pumps or vacuum equipment by use of standard vacuum fittings. Furthermore, they can be put directly into a vacuum chamber. Adaptors for different flange sizes, threads, and hoses are also available.
• Comfortable data saving: The P4 compact vacuum meter features an integrated data logger and save multiple measurement series, recording them with their RTC data.
• USB-C /Bluetooth® LE: The USB-C interface – or optional Bluetooth® LE for wireless data transfer – allows a direct readout of the measured data and the export of measurement series stored in the data logger.
• Data analysis: The VacuGraph™ software can be used to read out the data logger, as well as for an easy visualization and analysis of the measured data. This is especially beneficial in applications where data must be documented e.g., by saving and comparing pump-down characteristics for audits and quality assurance.
