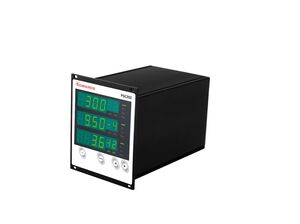

PGC202 - passive gauge Pirani/Ion Controller, D03000410
Onderdeelnummer:D03000410
EUR 4,449.00
Toegevoegd aan uw winkelwagen
PGC Passieve Meetregelaar
Edwards PGC201-controller bestrijkt het drukbereik tussen 10-9 en 1000 mbar door twee meetprincipes van de PRG- en CPG-meters te combineren. De PGC202 combineert PRG-meters en IG40 BA- of IG40 EX-meters voor metingen van vacuümdrukken in het bereik tussen 10-12 en 1000 mbar. Beide controllers bieden monitoring- en controlefuncties voor de aangesloten meters.
Features and Benefits
- Compacte 3-kanaals bedieningsunit voor een drukbereik voor passieve sensoren van -10^-9 tot 1000 mbar PGC201 -10^-12 tot 1000 mbar PGC202
- Automatische omschakeling van Pirani-bediening naar Penning koude kathode-bediening (PGC201)
- UHV-sensoren, ofwel Bayard-Alpert meetsysteem IG40 BA of Extractor meetsysteem IG40 EX (PGC202)
- Meetkabel lengtes tot 50 meter
- Eenvoudig te bedienen
General Product Information
| Weight | 1.40 |
| Voedingsspanning | 1Ph 100-240V ± 10%, 50/60 Hz |
| Dimension Length | 0.184 |
| IP Rating | IP40 |
| Dimension Height | 0.128 |
| Dimension Width | 0.105 |
| Connector Electrical Power | IEC EN60320 C14 - Male (for C13 plug on mains cable) |
| Measurement Channels | 3 |
| Available Units of Measurements |
mbar
Torr Pa |
| Accessoires / Leveringsomvang | Geleverd met EU- en VS-netkabel |
| Dimensie Opmerkingen | The dimensions length, width and height try to describe the outer shape of this particular product in its typical orientation when standing on the ground. We always recommend checking the detailed dimensions given in 2D drawings in the instruction manual or the 3D shapes given in 3D models. |
Environmental Conditions
| Temperature Ambient Operation Max | 323.15 |
| Temperatuur Omgeving Bedrijf Min | 278.15 |
| Temperature Ambient Storage Min | 253.15 |
| Temperature Ambient Storage Max | 333.15 |
Connectivity - Communication Interface
| Connection electrical comms interface connector | Passive gauges specific cables |
