Specificaties
| Connection Inlet Flange | DN 40 ISO-F |
| Connection vacuum outlet flange | DN 40 ISO-KF (NW40) |
| Cooling Method | Water Cooling |
| Pressure Ultimate | 3.00 |
| Voedingsspanning | 3Ph 380-400V 50Hz / 460V 60Hz |
| Totaal Vermogen Nominaal | 3700.00 |

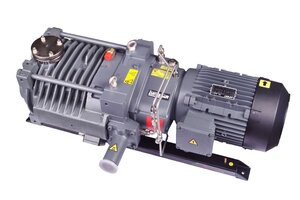

GV80 Drystar - Dry Claw Pump, 3Ph 380-400V 50Hz / 460V 60Hz Water Cooling
Onderdeelnummer:A70216940
Variant
Bekijk de onderstaande varianten om het product te vergelijken
| Korte beschrijving | Onderdeelnummer | Weight | Voedingsspanning | ProductCertification | Certification Motor | Inlaat Absolute Druk Continu Max | Classification Region | Totaal Vermogen Nominaal | Totaal Vermogen Nominaal @60Hz | Verplaatsing @60Hz Max | Pumping Speed Air Nitrogen (@50Hz or max @default setting) | Default Oil Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A70216934 | 157.00 | 3Ph 200V 50/60Hz / 380V 60Hz | - | CE UR | 15000.00 | ASIA KR JP | 4000.00 | 4000.00 | 0.031 | 0.022 | Mobil SHC 629 | |
| A70216940 | 157.00 | 3Ph 380-400V 50Hz / 460V 60Hz | - | CE UR CSA (C22.2 No.61010-1-12) NEMA | 15000.00 | EU CN SEA India US | 3700.00 | 3700.00 | 0.031 | 0.022 | Mobil SHC 629 | |
| A70217934 | 157.00 | 3Ph 200V 50/60Hz / 380V 60Hz | CE | CE UR | 15000.00 | ASIA KR JP | 4000.00 | 4000.00 | 0.031 | 0.031 | PFPE FOMBLIN® Y VAC 25/6 | |
| A70217940 | 157.00 | 3Ph 380-400V 50Hz / 460V 60Hz | - | CE UR CSA NEMA | 15000.00 | EU CN SEA India US | 3700.00 | 4000.00 | 0.031 | 0.022 | PFPE FOMBLIN® Y VAC 25/6 | |
| NR8030000 | 188.00 | 3Ph 380-400V 50Hz / 460V 60Hz | - | CE UR CSA NEMA | 20000.00 | EU CN SEA India US | 3700.00 | 3700.00 | 0.023 | 0.022 | Mobil SHC 629 | |
| NR8035000 | 189.00 | 3Ph 380-400V 50Hz / 460V 60Hz | - | CE UR CSA (C22.2 No.61010-1-12) NEMA | 15000.00 | EU CN SEA India US | 3700.00 | 3700.00 | 0.031 | 0.022 | PFPE prepared - FOMBLIN® Y VAC 06/6 to be purchased seperately |
Dry Claw Pumps
Droge klauwvacuümpompen zijn verdringerpompen die twee klauwvormige rotoren gebruiken om gas te vangen en samen te persen om een vacuüm te creëren. Ze zijn olievrij, onderhoudsarm en kunnen continu werken zonder slijtage. Ze worden vaak gebruikt in industriële toepassingen die betrouwbare en efficiënte vacuümsystemen vereisen.
GV Drystar
Edwards has the largest installed base of dry vacuum pumps in the world. Edwards’ dry claw vacuum pumps are built to the exacting standards and quality demanded by our customers. The technology is packaged into two products, the GV80 and GV110, offering many key advantages for industrial applications. GV80 and GV110, the GV Series dry pumps are designed to handle large volumes of condensable vapours and particulate loads for a consistent pumping performance you can rely on, with minimal service intervention and a low cost of ownership.
GV80
NA
Features and Benefits
- Robust - Continuous operation with the ability to handle large volumes of condensable vapours
- Reliable - High tolerance of process dust and particles
- Consistent output - Providing delivery of repeatable pumping performance
- Low cost of ownership - With clean, quiet pumping and minimal service disruption
- Environment friendly - Eliminating frequent oil changes and waste oil disposal
- Industry proven, tried and tested - Specifically designed for demanding industrial applications
General Product Information
| Connection Inlet Flange | DN 40 ISO-F |
| Weight | 157.00 |
| Connection vacuum outlet flange | DN 40 ISO-KF (NW40) |
| Leak Rate | 1.000 × 10⁻⁴ |
| Power Supply Phase | 3-Ph |
| Voedingsspanning | 3Ph 380-400V 50Hz / 460V 60Hz |
| Dimension Length | 0.860 |
| IP Rating | IP55 |
| Voedingsfrequentie |
50 Hz
60 Hz |
| Dimension Height | 0.344 |
| Dimension Width | 0.607 |
| Connector Electrical Power | Hard wiring (in electrical box of pump / mains) |
| Noise / Sound Level |
78.00
db(A)
78.00 db(A) |
| Cooling Method | Water Cooling |
| Connection Cooling | 1/2” Quick connect coupling |
| Motorefficiëntieklasse | IE3 |
| Aansluitflens Inlaat / Uitlaat | DN 40 ISO-F / DN 40 ISO-KF (NW40) |
| Dimensie Opmerkingen | The dimensions length, width and height try to describe the outer shape of this particular product in its typical orientation when standing on the ground. We always recommend checking the detailed dimensions given in 2D drawings in the instruction manual or the 3D shapes given in 3D models. |
| Certification Motor |
CE
UR CSA (C22.2 No.61010-1-12) NEMA |
| connectionPurgeGasBallastVentConnector |
1/4" Quick connect coupling
1/4" BSPP (or G 1/4") Female |
| connectionShaftsealPurge | Rigid Tube 1/4" outer diameter |
Operation Conditions - Limitations
| Inlaat Absolute Druk Continu Max | 15000.00 |
| Altitude Max | 1000.00 |
| Oil Capacity Min | 0.000 |
| Oil Capacity Max | 4.000 × 10⁻⁴ |
| Flow Cooling Water Min | 1.333 × 10⁻⁴ |
| Temperature Cooling Water Max | 308.15 |
| Temperature Cooling Water Min | 278.15 |
| Temperature Inlet Gas Max | 318.15 |
| Druk Absoluut Uitlaat Continu Max | 1.300 × 10⁵ |
Classification
| Classification Product Pressure Range |
Medium Vacuum: 1 mbar - 1·10⁻³ mbar
Rough Vacuum: 1000 mbar - 1 mbar |
| Classification High / Medium / Rough Vacuum pump | Rough Vacuum Pump |
| Classification Dry or Wet Pump | Dry |
| Classification Vacuum Pump Technology | Dry Claw Pump |
| Classification Region |
EU
CN SEA India US |
Performance Data
| Totaal Vermogen Nominaal | 3700.00 |
| Totaal Vermogen Nominaal @60Hz | 3700.00 |
| Totale Vermogen Nominaal @50Hz | 4000.00 |
| Pumping Speed Air Nitrogen 60Hz | 0.025 |
| Pumping Speed Air Nitrogen 50Hz | 0.023 |
| Nominale Rotatiesnelheid 50Hz | 3000.00 |
| Verplaatsing @50Hz Max | 0.025 |
| Pressure Ultimate | 3.00 |
| Nominale Draaisnelheid 60Hz | 3600.00 |
| Verplaatsing @60Hz Max | 0.031 |
| Nominal rotational speed | 50.00 |
| Pumping Speed Air Nitrogen (@50Hz or max @default setting) | 0.022 |
| Warm Up Time | 900.00 |
Lubricants
| Default Oil Type | Mobil SHC 629 |
Environmental Conditions
| Temperature Ambient Operation Max | 313.15 |
| Temperatuur Omgeving Bedrijf Min | 273.15 |
| Temperature Ambient Storage Min | 353.15 |
| Temperature Ambient Storage Max | 253.15 |
Material of Construction
| Materiaal van Constructie | Grijs gietijzer, Koolstofstaal, Roestvast staal, Fluorelastomeer, PTFE |
| Materiaal Blootgesteld aan Vacuüm | Grey Cast Iron, Carbon steel, SG iron |
| Materiaal rotor | SG Iron |
| Materiaal stator | Cast Iron GGL25 |
