Angle Valve - PV16MKA - Right Angle Bellows Sealed Al NW16, C31205000
Onderdeelnummer:C31205000
EUR 433.00
Variant
Bekijk de onderstaande varianten om het product te vergelijken
| Korte beschrijving | Onderdeelnummer | Connection Inlet Flange | Material Body |
|---|---|---|---|
| C31105000 | DN 10 ISO-KF (NW10) | Aluminum | |
| C31205000 | DN 16 ISO-KF (NW16) | Aluminum | |
| C31215000 | DN 16 ISO-KF (NW16) | Stainless Steel 1.4301 / 304 / X5 CrNi 18 10 | |
| C31305000 | DN 25 ISO-KF (NW25) | Aluminum | |
| C31315000 | DN 25 ISO-KF (NW25) | Stainless Steel 1.4301 / 304 / X5 CrNi 18 10 | |
| C31405000 | DN 40 ISO-KF (NW40) | Aluminum | |
| C31415000 | DN 40 ISO-KF (NW40) | Stainless Steel 1.4301 / 304 / X5 CrNi 18 10 | |
| C31515000 | DN 50 ISO-KF (NW50) | Stainless Steel 1.4301 / 304 / X5 CrNi 18 10 |

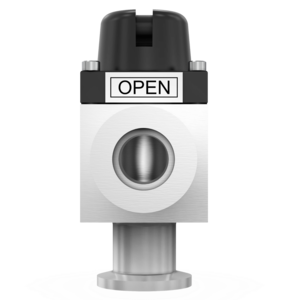

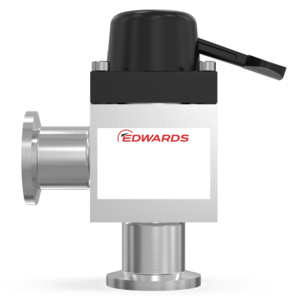

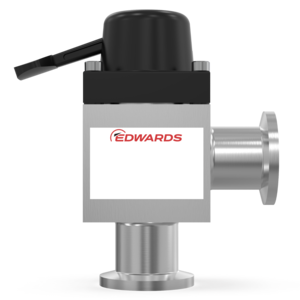

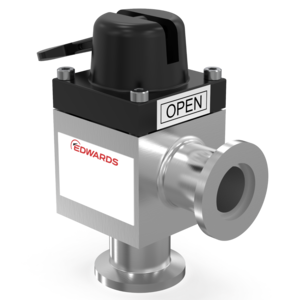

PVMK ISO-KF - Rt Angle Isolation Valve
De PVMK is een snel werkend, balg-afgedicht, haaks hendelbediend ventiel en is verkrijgbaar met een aluminium of roestvrijstalen behuizing. De hendel, verbonden met een zelf smerende kunststof nok-piston, bedient de ventielstang en ventielplaat via PTFE-lagers. De O-ring groef van de ventielplaat is geventileerd om gasuitbarstingen te voorkomen. De ventielen zijn ontworpen om te werken tot 10-9 mbar / 8 x 10-10 Torr en tot een druk van 2100 mbar / 1575 Torr (30 psi).
Features and Benefits
- Eenvoudig te gebruiken
- Balgen-afdichtingsmechanisme
- Hoge geleiding
General Product Information
| Recommended Pressure Range Min | 1.000 × 10⁻⁷ |
| Recommended Pressure Range Max | 2.100 × 10⁵ |
| Connection Inlet Flange | DN 16 ISO-KF (NW16) |
| Weight | 0.180 |
| Valve Actuation Method | Manual |
| Connection vacuum outlet flange | DN 16 ISO-KF (NW16) |
| Leak Rate | 1.000 × 10⁻¹⁰ |
| IP Rating | IP67 |
| Dimensie Opmerkingen | The dimensions length, width and height try to describe the outer shape of this particular product in its typical orientation when standing on the ground. For valves in particular we recommend checking the detailed dimensions given in 2D drawings in the instruction manual or the 3D shapes given in 3D models. |
Material of Construction
| Material Body | Aluminum |
| Material Abbreviation | Al |
| Material Seal | FKM |
Performance Data
| Leak Rate Across Seat Valve | 1.000 × 10⁻¹⁰ |
Operation Conditions - Limitations
| Temperature Baking Max | 373.15 |
| Valve Pressure Max | 2.100 × 10⁵ |
| Reliability MTTF (mean time to failure) | 1.000 × 10⁵ |
| Product Titel | Onderdeelnummer | Prijs | In winkelwagen |
|---|---|---|---|
| Clamping Ring - St St NW10/16 (red wing nut), C10512401 | C10512401 | EUR 10.30 | |
| Centring Ring - St St FKM O-Ring - NW16, C10512395 | C10512395 | EUR 15.20 | |
| Centring Ring - St St Nitrile O-Ring - St St NW16, C10512396 | C10512396 | EUR 12.00 | |
| Clamp - Hinged Clamp - AL NW10/16, C10512402 | C10512402 | EUR 42.80 |
| Product Titel | Onderdeelnummer | Prijs | In winkelwagen |
|---|---|---|---|
| Spares Kit Valve Seals PVPK10/16, C41111800 | C41111800 | EUR 22.50 | |
| Spares Kit Pad & Body O Ring PV10EK, C41101800 | C41101800 | EUR 25.80 |
