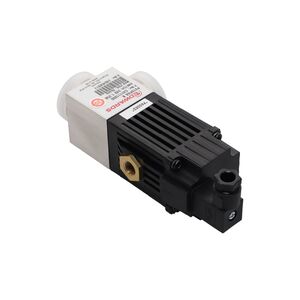

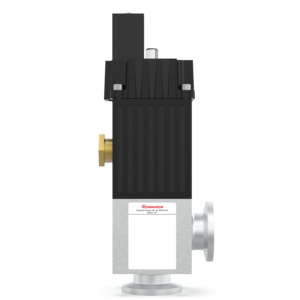

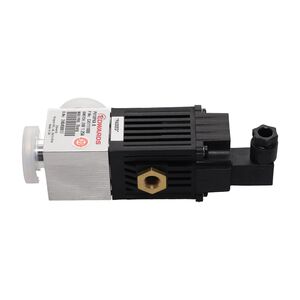

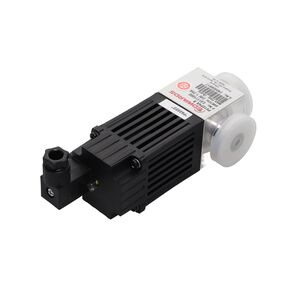

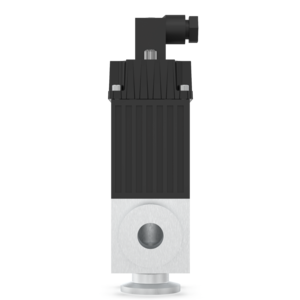

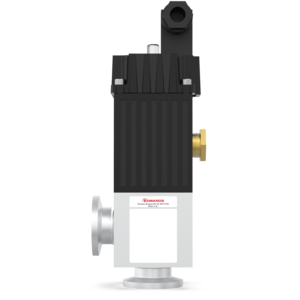

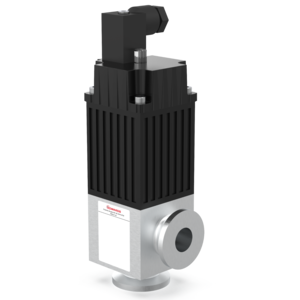

Angle Valve - PV10PKA - Bellows Sealed Al, C41111000
Onderdeelnummer:C41111000
EUR 618.00
Toegevoegd aan uw winkelwagen
Variant
Bekijk de onderstaande varianten om het product te vergelijken
| Korte beschrijving | Onderdeelnummer | Connection Inlet Flange | Material Body |
|---|---|---|---|
| C41111000 | DN 10 ISO-KF (NW10) | Aluminum | |
| C41113000 | DN 10 ISO-KF (NW10) | Aluminum | |
| C41211000 | DN 16 ISO-KF (NW16) | Aluminum | |
| C41213000 | DN 16 ISO-KF (NW16) | Aluminum | |
| C41215000 | DN 16 ISO-KF (NW16) | Stainless Steel 1.4404 / 316 L / X2 CrNiMo 17 13 2 | |
| C41311000 | DN 25 ISO-KF (NW25) | Aluminum | |
| C41313000 | DN 25 ISO-KF (NW25) | Aluminum | |
| C41315000 | DN 25 ISO-KF (NW25) | Stainless Steel 1.4301 / 304 / X5 CrNi 18 10 | |
| C41317000 | - | Aluminum | |
| C41318000 | - | Aluminum | |
| C41411000 | DN 40 ISO-KF (NW40) | Aluminum | |
| C41413000 | DN 40 ISO-KF (NW40) | Aluminum | |
| C41415000 | DN 40 ISO-KF (NW40) | Stainless Steel 1.4301 / 304 / X5 CrNi 18 10 | |
| C41417000 | - | Aluminum | |
| C41510000 | DN 50 ISO-KF (NW50) | Aluminum | |
| C41510100 | - | Aluminum | |
| C41515000 | DN 50 ISO-KF (NW50) | Stainless Steel 1.4301 / 304 / X5 CrNi 18 10 |
PVPK ISO-KF - Rt Angle Isolation Valve
De Edwards PVPK-kleppen zijn snelwerkende, pneumatisch bediende haakse afsluitkleppen met balgen en O-ring afdichting voor een vetvrij vacuüm. Met visuele en elektrische indicatie van de klepstatus en een optie van aluminium of roestvrijstalen constructie, bieden ze een kosteneffectieve klep die ideaal is voor intensief gebruik.
Features and Benefits
- Verbeterde levensduur, gemiddelde tijd tot falen nu 5.000.000 cycli
- Elektrische en visuele indicatie van klepstatus
- Verkrijgbaar in aluminium of roestvrij staal
- Keuze uit balg- of O-ring-assafdichting met aluminium behuizingen
General Product Information
| Recommended Pressure Range Min | 1.000 × 10⁻⁷ |
| Recommended Pressure Range Max | 2.100 × 10⁵ |
| Connection Inlet Flange | DN 10 ISO-KF (NW10) |
| Weight | 0.310 |
| Valve Actuation Method | Pneumatic |
| Connection vacuum outlet flange | DN 10 ISO-KF (NW10) |
| Leak Rate | 1.000 × 10⁻¹⁰ |
| IP Rating | IP67 |
| Dimensie Opmerkingen | The dimensions length, width and height try to describe the outer shape of this particular product in its typical orientation when standing on the ground. For valves in particular we recommend checking the detailed dimensions given in 2D drawings in the instruction manual or the 3D shapes given in 3D models. |
Material of Construction
| Material Body | Aluminum |
| Material Abbreviation | Al |
| Material Seal | FKM |
Environmental Conditions
| Temperatuur Omgeving Bedrijf Min | 278.15 |
Performance Data
| Leak Rate Across Seat Valve | 1.000 × 10⁻¹⁰ |
| Maximaal Drukverschil | 2.100 × 10⁵ |
Operation Conditions - Limitations
| Temperature Baking Max | 373.15 |
| Valve Pressure Max | 2.100 × 10⁵ |
| Reliability MTTF (mean time to failure) | 5.000 × 10⁶ |
