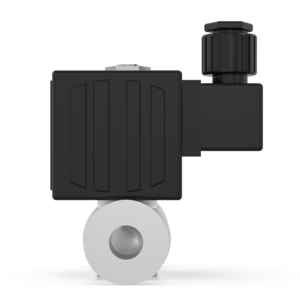

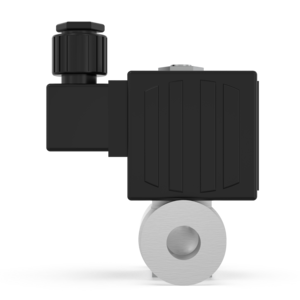

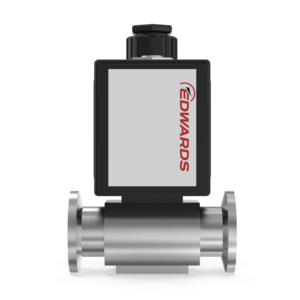

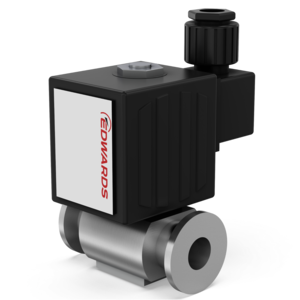

Inline Air Admittance Valve - IPVA10EK - 24V DC (normally closed), C41770200
Onderdeelnummer:C41770200
EUR 498.00
Variant
Bekijk de onderstaande varianten om het product te vergelijken
| Korte beschrijving | Onderdeelnummer |
|---|---|
| C41760200 | |
| C41770200 |
General Product Information
| Connection Inlet Flange | DN 10 ISO-KF (NW10) |
| Weight | 0.350 |
| Valve Actuation Method | Solenoid / Electromagnetic |
| Leak Rate | 1.000 × 10⁻⁷ |
| Voedingsspanning | DC 24V |
| IP Rating | IP65 |
| Dimensie Opmerkingen | The dimensions length, width and height try to describe the outer shape of this particular product in its typical orientation when standing on the ground. For valves in particular we recommend checking the detailed dimensions given in 2D drawings in the instruction manual or the 3D shapes given in 3D models. |
Environmental Conditions
| Temperature Ambient Operation Max | 328.15 |
| Temperatuur Omgeving Bedrijf Min | 253.15 |
| Temperature Ambient Storage Min | 253.15 |
| Temperature Ambient Storage Max | 328.15 |
Performance Data
| Leak Rate Across Seat Valve | 1.000 × 10⁻⁷ |
Material of Construction
| Material Body | Aluminum |
| Material Abbreviation | Al |
Operation Conditions - Limitations
| Reliability MTTF (mean time to failure) | 5.000 × 10⁵ |
| Product Titel | Onderdeelnummer | Prijs | In winkelwagen |
|---|---|---|---|
| Clamping Ring - St St NW10/16 (red wing nut), C10512401 | C10512401 | EUR 10.30 | |
| Centring Ring - St St FKM O-Ring - NW10, C10511395 | C10511395 | EUR 13.60 | |
| Centring Ring - Al Nitrile O-Ring - NW10, C10511398 | C10511398 | EUR 8.60 | |
| Centring Ring - Al FKM O-Ring NW10, C10511397 | C10511397 | EUR 13.70 |
